Structure Features

1. Suitable for verical strorage tanks storing class A oils its flash point below 28℃ and class B oils below 60’℃, including gasoline, toluene,

kerosene, crude oil and others;

2. Applied with respective breather valves;

3. Resistant elements made from stainless steel corrugated steel bands;

4. Operating pressure≤1.0Mpa;

5. Inlet & outlet flange as per ANSI B16.5 150Lb RF (customizes as per specific requirements of clients).

Performance

1. Certified explosion-resistant performance, can resist fire each time during the test for a sucessive 13 times.

2. Qualified flame-resistant performance, no tempering is indicated for the test within 1 hour.

3. Qualified for water pressure test of case.

Applicable Range

Arrestoer is applied for class A oils, kind of oxyhydrogen liquefaction, as well as kerosene, diesel oil, Toluene oil and etc.With a flammability point below 60℃.

Overview

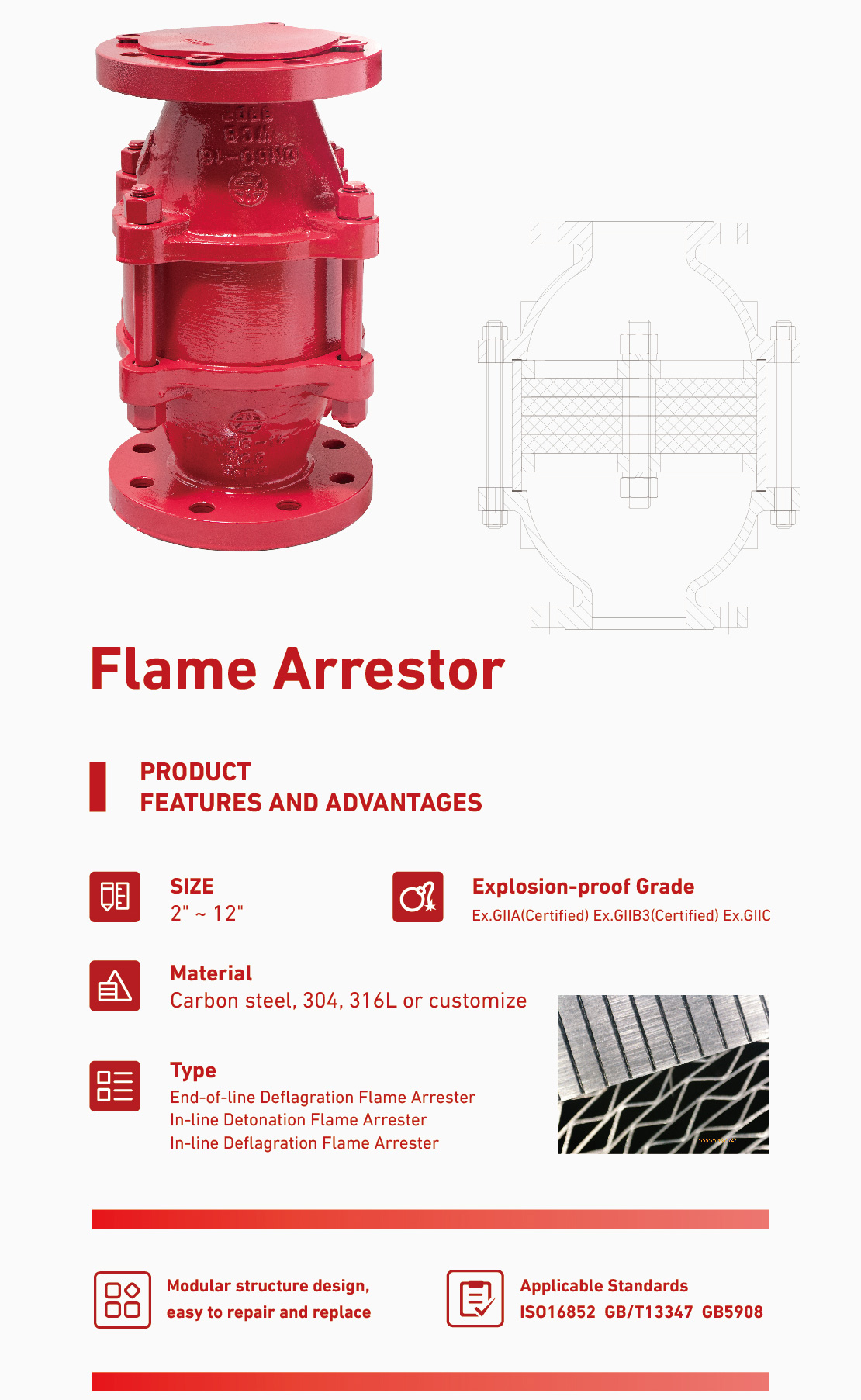

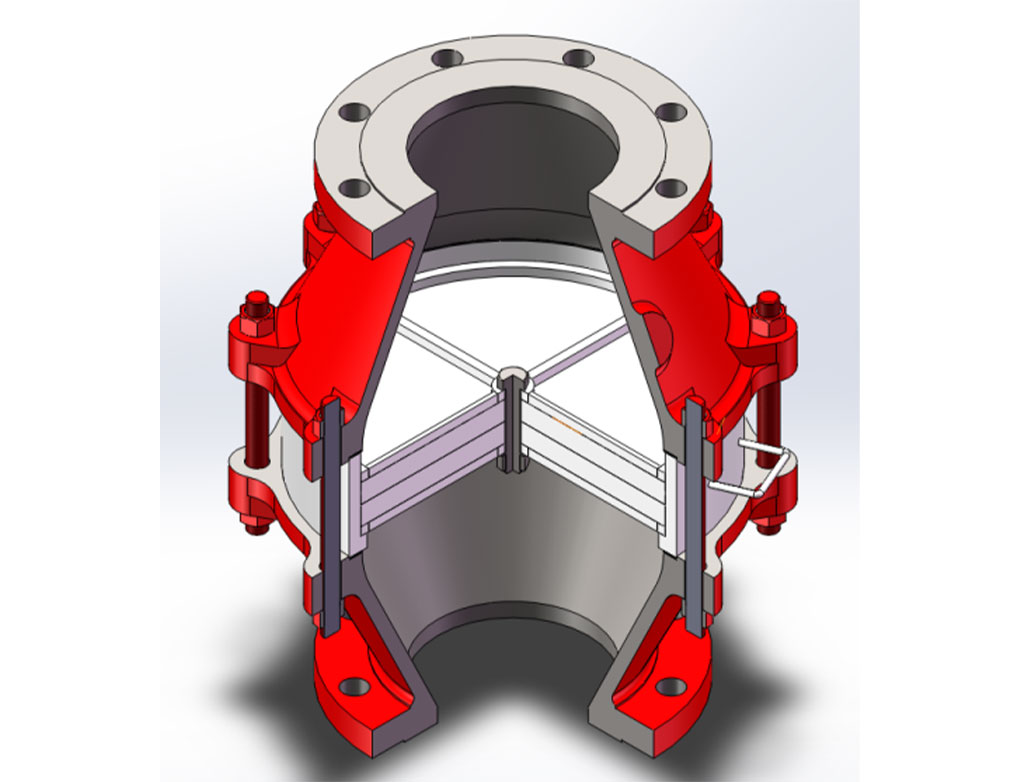

ZHII Type Explosion-resistant Pipeline Arrestor is an upgraded new product applicable for combustible gas pipeline.This arrestor is perfectly in line with the regulations stipulated in GB13347-97 Fireproof Performance and Test Method for Arrestor of Petroleum Gas Pipeline. The arrestor, with reasonable construction and made of stainless steel, is resistant in corrosion and easily cleaned. The case, made up from stainless steel, carbon steel and cast steel, can meet all needs of different technogical pipelines
